Install Guide
Model Image

BC51 Alarm Console

BC51 What’s in the box

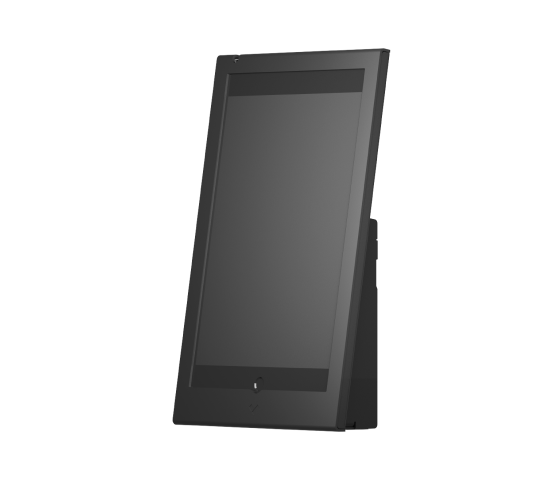

  • BC51 Alarm Console

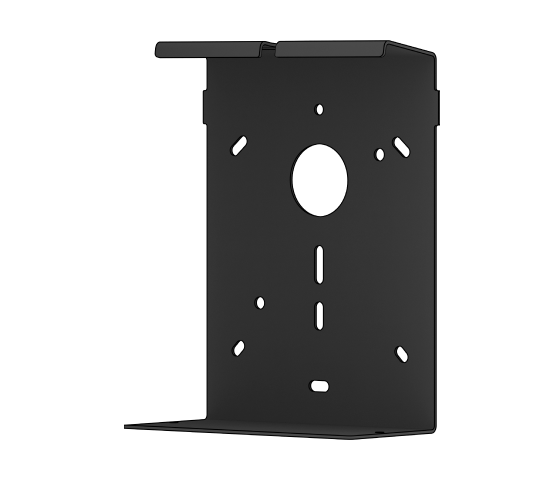

  • Mount Plate (Attached to console)

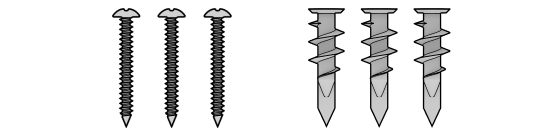

  • 3x Wall Screws and Wall Anchors

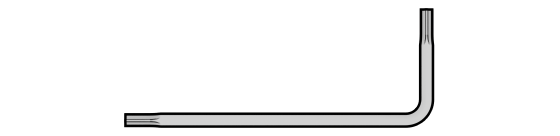

  • T10 Security Torx L-key

BC51 What you’ll need

  • A working internet connection
  • A smartphone or laptop
  • 1/4 inch (6.5mm) drill bit for wall anchors
  • 1/8 inch (3mm) drill bit for pilot holes
  • A Cat5 or Cat6 Ethernet cable

BC51 Assembly

Unscrew two security screws with the L-key provided in the box.
Remove mount plate by sliding it down and out.

BC51 Connect

Connect Ethernet cable to PoE adaptor.

For easy registration and setup, scan the QR code on the product.

If you prefer to manually register your product, please proceed to: verkada.com/start

BC51 Mounting

Mount plate details
Use the mount plate as a template and mark the correct hole pattern.

A Wall mount
B 4’’ Square junction box
C European junction box, 3.5’’ Round junction box
D Single gang junction box
E 4’’ Round junction box


Mounting Option 1:
Cable exit through surface

Route ethernet cable through the center hole. Secure mount plate by using provided drywall anchors and screws.

Mounting option 2:
Cable exit along surface

If you are routing the cable along the wall, loop the cable through the center cutout on mount plate.

Make sure your ethernet cable is connected to PoE adaptor.
Push your BC51 against mount plate and slide it down to engage all the mounting hooks.
Tighten two screws on the bottom to secure the device.

Support

Thank you for purchasing a Verkada camera. If for any reason things don't work right or you need assistance, please contact us immediately.

Sincerely,

The Verkada Teamverkada.com/support
